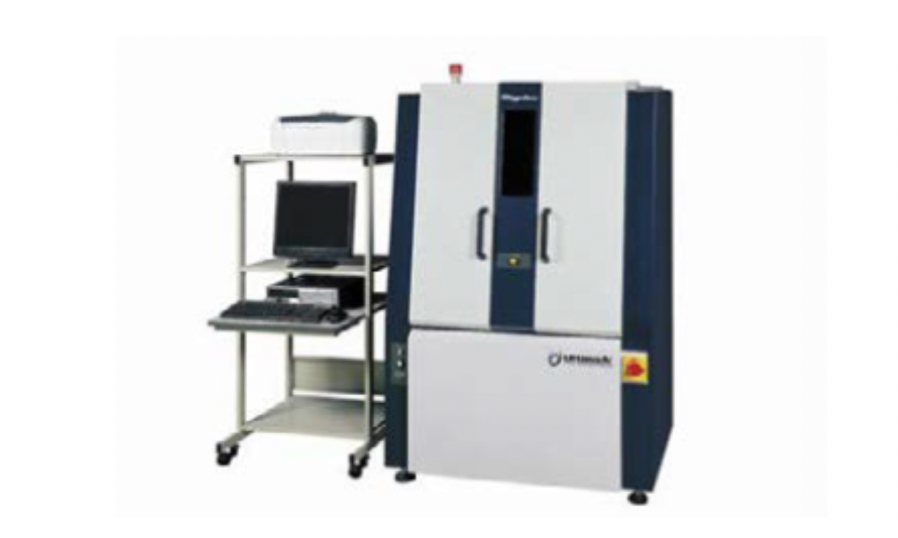

모델명 : Ultima IV

규격

· X-rayGenerator

- Max. Rated Tube Voltage & Current : 50㎸ / 60㎃ or Higher

- X-ray Tube Cu Target Tube (Normal Focus)

· High Precision Goniometer

- Moving Range 2 Theta Measuring Range : -3 to +162°or more

- Min. Step Size : 0.0001°or better

- Scan Speed : 0.02 to 100°/min(2θ) or Better

- Oscillation(Reciprocal Motion in 45°Direction) Operation Range : ±10㎜

- Sample Size : max. Dia.=40㎜, max. Thickness=10㎜

특징

· 사용하기 쉽고 유연성을 가짐

· 전체 시스템이 완전 자동

· Functional Expansion이 XRD-DSC가 결합

용도

· Metal 및 분말 결정구조 분석
